Huawei MA5600 SPLF SPLH 64-channel ADSL2+ Over POTS Splitter Board

Overview of SPLF/SPLH Board 64-channel ADSL2+ Over POTS Splitter Board:
The SPLF/SPLH board is a 64-channel splitter board. It has the following functions:
* The SPLF board separates POTS signals from ADSL2+ signals.

* The SPLH board separates ISDN signals from ADSL2+ signals.

After the separation, the SPLF/SPLH board transmits the POTS or ISDN signals to the PSTN switching device, and the ADSL2+ signals to the ADEF/ADBF board. Table 3-41 lists the differences between the SPLF and SPLH boards.
Differences between the SPLF and SPLH boards:
The SPLF/SPLH board can be installed in slots 0-6 and 9-15 of the MA5600 SPL shelf.

External connections of the SPLF/SPLH board:
Working principles of the SPLF/SPLH board:
The basic working principles of the SPLF/SPLH board are as follows:
* The LINE signals reach the splitter through the protection circuit.

* The splitter filters out the POTS signals.
Front panel of the SPLF board:

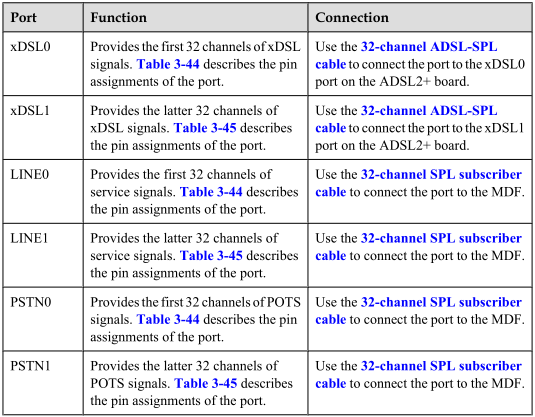

Ports on the front panel of the SPLF/SPLH board:
Specifications of the SPLF/SPLH board:
Hong Telecom Equipment Service Limited (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, can provide Huawei MA5600 SPLF SPLH 64-channel ADSL2+ Over POTS Splitter Boards with the shortest lead time and best quanlity.
