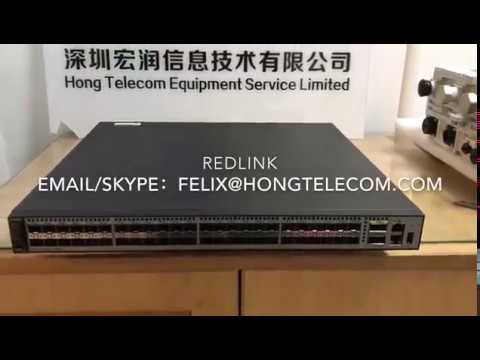

Huawei Switch S6720-54C-EI-48S Video

--For more details, please check our official website www.hongtelecom.com or www.hongtelecom.net    My Email/Skype: felix@hongtelecom.com  (Felix)

S6720-54C-EI-48S-AC

Version Mapping

lists the mapping between the S6720-54C-EI-48S-AC chassis and software versions.

Table 1 Version mapping

Series	Model	Software Version
S6720-EI	S6720-54C-EI-48S-AC	V200R008C00 and later versions

Appearance and Structure

Figure 1 S6720-54C-EI-48S-AC appearance

Similar products： S6720-30C-EI-24S

S5720S-SI
S5720S-52P-SI-AC
S5720S-28X-SI-AC
S5720S-28X-SI-DC
S5720S-52X-SI-AC
S5720S-52X-SI-DC

1	Forty-eight 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing supported in V200R009 and later versions) 10GE SFP+ optical module (OSXD22N00 and SFP-10G-ZR not supported) 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (the last 16 ports are supported, used for zero-configuration stacking, supported in V200R011C10 and later versions)	2	Two 40GE QSFP+ ports Applicable modules and cables: QSFP+ optical module 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables 1 m, 3 m, and 5 m QSFP+ to 4*SFP+ high-speed copper cables 10 m QSFP+ to QSFP+ AOC cable (applicable in V200R009C00 and later versions) 10 m QSFP+ to 4*SFP+ AOC cable (applicable in V200R009C00 and later versions) NOTE: A 40GE QSFP+ optical port can be split into four 10GE ports.
3	ETH management port	4	One console port
5	One USB port	6	Ground screw NOTE: It is used with a ground cable.
7	ESN label NOTE: You can draw it out to view the ESN and MAC address of the switch.	8	Rear card slot NOTE: Card supported: ES5D21Q04Q01 (4-Port 40 Gig QSFP+ Rear Interface Card)
9	Fan slot NOTE: Applicable fan module: FAN-060B-B Fan Module	10	Power module slot 2 NOTE: Applicable power modules: 350 W DC power module 600 W AC power module
11	Power module slot 1 NOTE: Applicable power modules: 350 W DC power module 600 W AC power module	-	-

Port Description

10GE SFP+ port

A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 2 describes the attributes of a 10GE SFP+ Ethernet optical port.

Table 2 Attributes of a 10GE SFP+ port

Attribute	Description
Connector type	LC/PC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ae
Working mode	GE/10GE auto-sensing

40GE QSFP+ port

A 40GE QSFP+ optical port sends and receives service traffic at 40 Gbit/s and can be split into four 10GE ports. After a split, 40GE QSFP+ optical port needs to be connected to a remote device using a 1-to-4 QSFP+ fiber (with matching optical modules), 1-to-4 QSFP+ AOC cable, or a 1-to-4 QSFP+ copper cable. Table 3 describes the attributes of a 40GE QSFP+ optical port.

Table 3 Attributes of a 40GE QSFP+ optical port

Attribute	Description
Connector type	MPO/LC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ba

Console port

The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4.

Table 4 Attributes of a console port

Attribute	Description
Connector type	RJ45
Standards compliance	RS-232
Working mode	Duplex Universal Asynchronous Receiver/Transmitter (UART)
Baud rate	9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/s Default value: 9600 bit/s

ETH management port

You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. For details on how to use the ETH management port, see the Configuration Guide - Basic Configurations. Table 5 describes the attributes of an ETH management port.

Table 5 Attributes of an ETH management port

Attribute	Description
Connector type	RJ45
Standards compliance	IEEE802.3
Working mode	10/100 Mbit/s auto-sensing
Maximum transmission distance	100 m

USB port

The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.

 NOTE:

USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.

Indicator Description

The S6720-54C-EI-48S-AC has the same types of indicators as the S6720-30C-EI-24S-AC. For details, see Indicator Description.

Power Supply Configuration

The S6720-54C-EI-48S-AC can be configured with a single power module or double power modules for 1+1 power redundancy. AC and DC power modules can be used together in the same switch.

Figure 2 shows the power supply connections of dual DC power modules. After DC power is transmitted to the PWR module, the PWR module provides 12 V output voltage, and the motherboard provides power for the entire device.

Figure 2 Power supply connections of dual DC power modules

NEG: negative cable

RTN: positive cable

GND: 12 V reference ground

Figure 3 shows the power supply connections of dual non-PoE AC power modules. After AC power is transmitted to the PWR module, the PWR module provides 12 V output voltage, and the motherboard provides power for the entire device.

Figure 3 Power supply connections of dual non-PoE AC power modules

L: Live wire

N: Neutral wire

PGND: Protective ground cable

GND: 12 V reference ground

Heat Dissipation

The S6720-54C-EI-48S-AC uses pluggable fan modules for forced air cooling. Air flows in from the left side, right side, and front panel, and exhausts from the rear panel.

Technical Specifications

Table 6 lists technical specifications of the S6720-54C-EI-48S-AC.

Table 6 Technical specifications

Item	Description
Memory (RAM)	2 GB
Flash	240 MB
Mean time between failures (MTBF)	79.39 years when no interface card is configured; 69.86 years when a 4-port 40GE interface card is configured
Mean time to repair (MTTR)	2
Availability	> 0.99999
Service port surge protection	NA
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)
Weight (including packaging materials)	10.2 kg (22.49 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE QSFP+ ports (a maximum of 6 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	296.1 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	190 W (without card) 209 W (with card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 72.1 dBA
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02350DMP
