Huawei N66E-18 Telecom Access NetWork Cabinet

The N66E-18 dual-standard cabinet complies with both the ETSI standard and the IEC standard. This topic covers the appearance, configuration, cable holes, ESD jack, air filter, external cable connections, ventilation, and specification of the N66E-18 dual-standard cabinet.

This topic provides the appearance of the N66E-18 dual-standard cabinet.

The N66E-18 cabinet is a dual-standard 600 mm cabinet of NC purple grey. One side
complies with IEC and the other side complies with ETSI.

The N66E-18 cabinet houses the MA5600T ETSI/IEC subrack and MA5603T chassis.

The N66E-18 cabinet consists of the rack (main frame), a front door, a rear door, and side panels on the left and right sides.

Doors of the N66E-18 cabinet are removable and the top of the cabinet has the grounding point.

All N66E-18 cabinets have the same keys for the front and rear doors.

Appearance of the N66E-18 dual-standard cabinet:
Physical Specifications：
Dimensions of the N66E-18 dual-standard cabinet

Dimensions and weight of the N66E-18 dual-standard cabinet：

Configuration (ETSI subrack)：

The N66E-18 dual-standard cabinet uses AC or DC power supply. This topic describes the configurations of MA5600T ETSI subracks in the cabinet.

DC-powered Cabinet with Two ETSI Subracks：

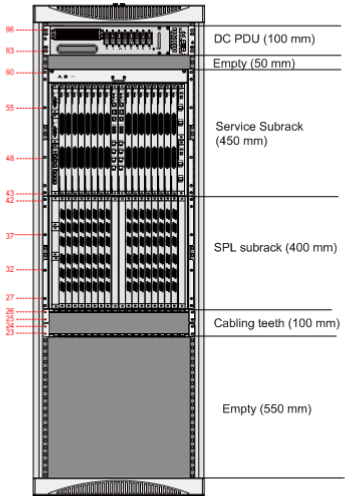

DC-powered Cabinet with One ETSI Subrack and One SPL Subrack:
AC-powered Cabinet with Two ETSI Subracks:
Configuration of the N66E-18 cabinet installed with two ETSI subracks

As a world leading Huawei networking products supplier, Hong Telecom Equipment Service LTD(HongTelecom) keeps regular stock of Huawei GPON XG-PON XGS-PON and all accessaries with very good price, also HongTelecom offers a very fast speed of goods delivery.
For related articles, visit the HongTelecom Blog and HongTelecom Blogger.
For real pictures of related product, visit the HongTelecom Gallery.
To buy related product, visit the HongTelecom Online Shop.

Contact: Ethan Kew(Mr.)
Wechat/Phone:+ 86 13544269587
Skype: Hongtelecom_ethan
